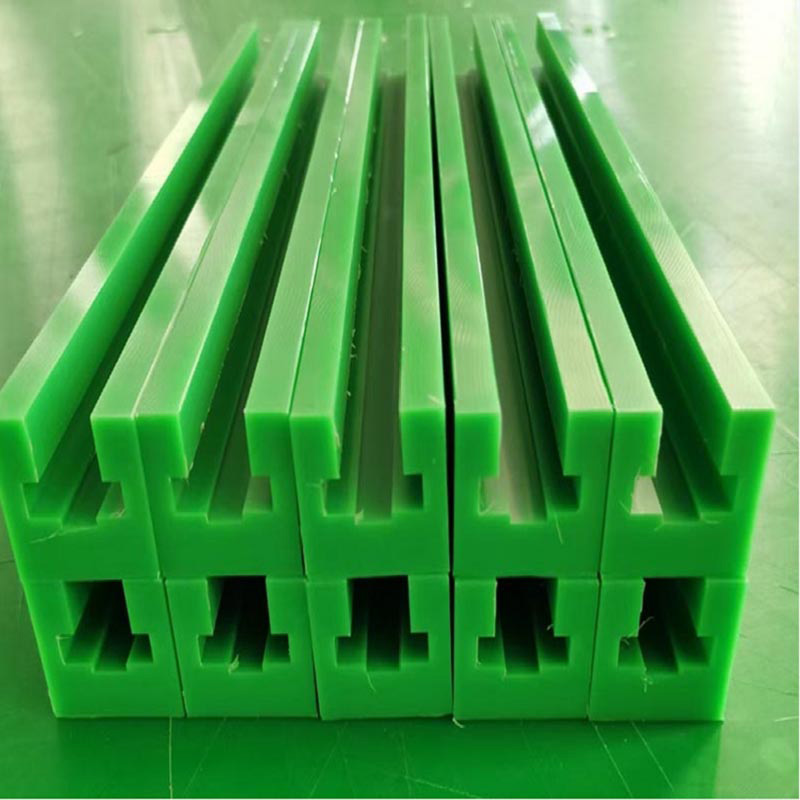

How To Measure Conveyor Chain Guide

How To Measure Conveyor Chain Guide

Measuring the Conveyor Chain Guide requires some basic tools and steps:

Measuring tools: Measuring tools such as tape measure, vernier caliper or laser rangefinder are usually used.

Measurement position: Determine the start and end of the Conveyor Chain Guide to be measured and mark it.

Measuring length: Use the selected measuring tool to measure along the length of the Conveyor Chain Guide to ensure the accuracy of the measurement.

Record data: Record the measured length data to ensure subsequent analysis and comparison.

Check verticality: In addition to the length, the verticality of the conveyor chain rail can be checked using a level or other appropriate tool to ensure that it is properly installed.

Analyze the data: Analyze the measured data, compare the difference between the actual length and the design length, evaluate the status of the Conveyor Chain Guide and whether it needs to be adjusted or replaced.

Calibration equipment: The measurement tool is calibrated regularly to ensure the accuracy of the measurement results.

Through the above steps, the Conveyor Chain Guide can be effectively measured, evaluated and managed.
